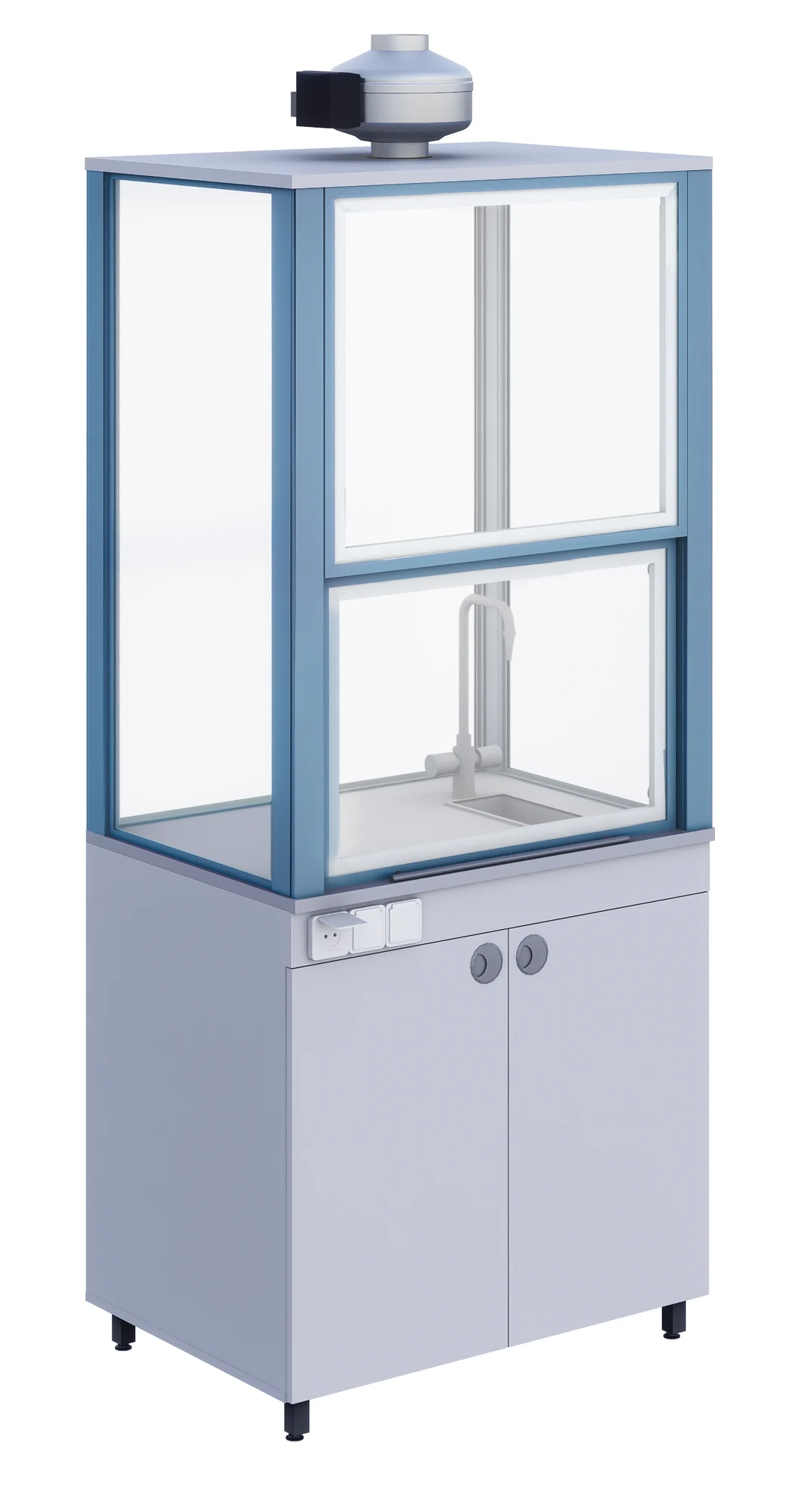

Demonstration Fume Cupboard
A demonstration fume cupboard for chemistry classrooms, with a chemical-resistant worktop, integrated sink and mixer tap, transparent working chamber and service compartment.
The vertically opening front screen can be fixed at any position, while the supplied fan supports connection to a suitable extraction system.
| Weight | 95 kg |
|---|---|
| Dimensions (W × D × H) | 900 × 640 × 2257 mm |
* Цены являются ориентировочными.
[price_disclaimer]
Key Features
- Transparent demonstration chamber with organic-glass walls.
- Vertically opening front screen in an aluminium profile.
- Chemical-resistant worktop with integrated sink and mixer tap.
- IP54 electrical sockets on the front panel.
- Service compartment with two hinged doors.
- Extraction outlet and fan included; external ducting is not supplied.
Detailed technical specifications
| Parameter | Specification |
|---|---|
| Product type | Demonstration fume cupboard for chemistry classrooms |
| Overall dimensions | 900 × 640 × 2257 mm |
| Cupboard height without extraction connection | 2087 mm |
| Base frame | Steel profile, at least 30 × 30 × 1.5 mm |
| Worktop | 22 mm chipboard with 0.6 mm chemical-resistant HPL |
| Glazing | Organic glass, at least 3 mm |
| Sink | Chemical-resistant sink with trap and mixer tap |
| Electrical equipment | IP54 sockets |
| Ventilation | Round extraction outlet; fan included |
| Weight | 95 kg |
| Package dimensions | 900 × 640 × 1800 mm |
| Units per package | 1 |
| Package volume | 1.04 m³ |
